Settings for Current Backup Task

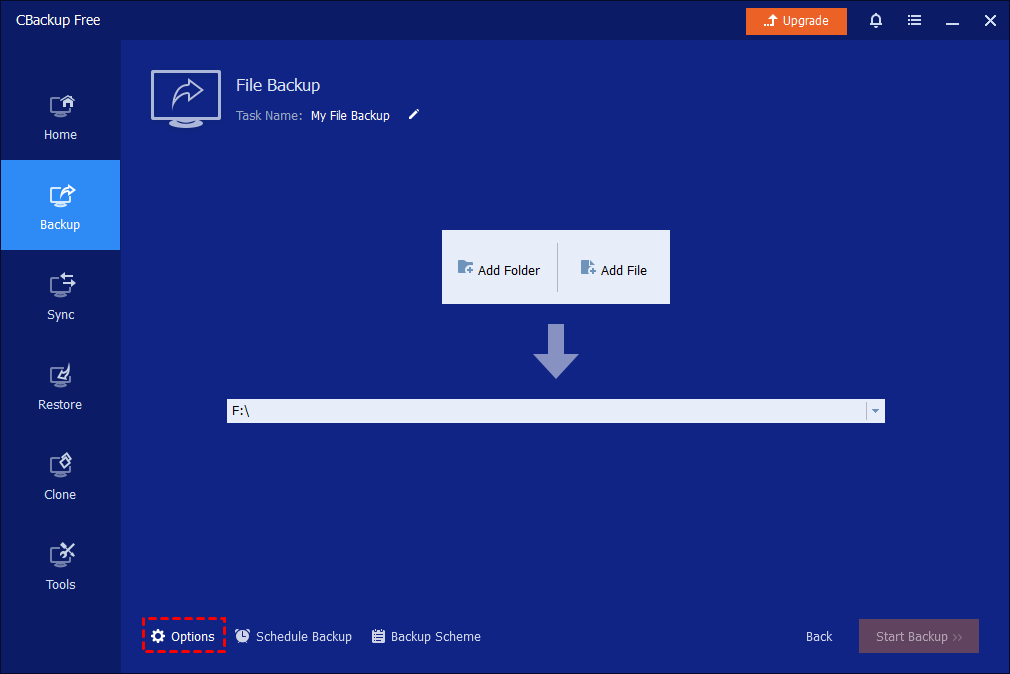

When creating a new backup task, you will see "Options" in the lower left corner of the interface.

Click it and you will see "General", "Backup Mode", "Command", and "Advanced" options.

• General
• Backup Mode
• Command
• Advanced

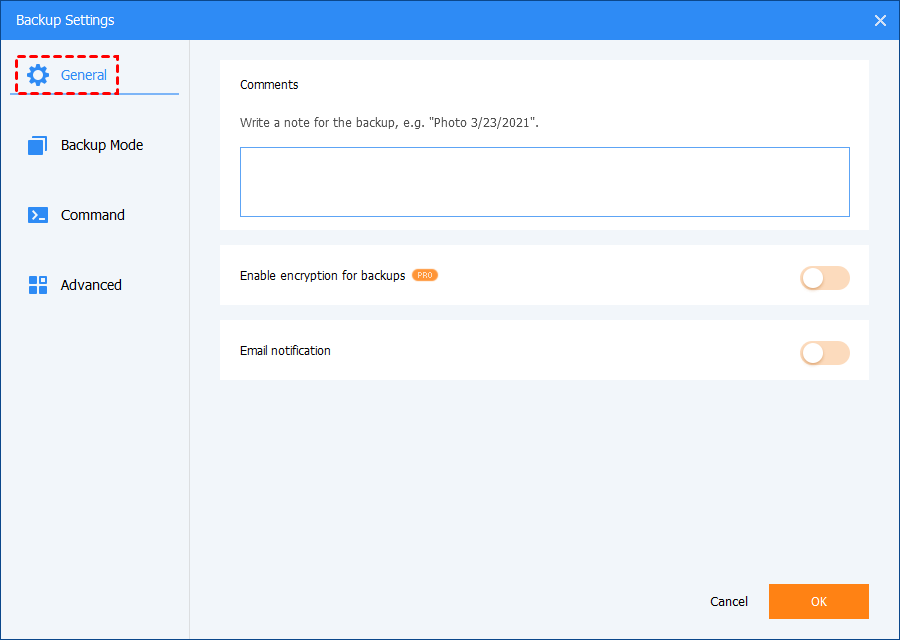

General

In this option, you can write a note for your task to help you distinguish it from other backup tasks. In addition, you can enable encryption and email notification for this task.

Enable encryption for backups: Enable encryption to protect your backup images. The password is used as a key by the industry-standard AES (Advanced Encryption Standard) cryptographic algorithm, which will totally encrypt all data in the image.

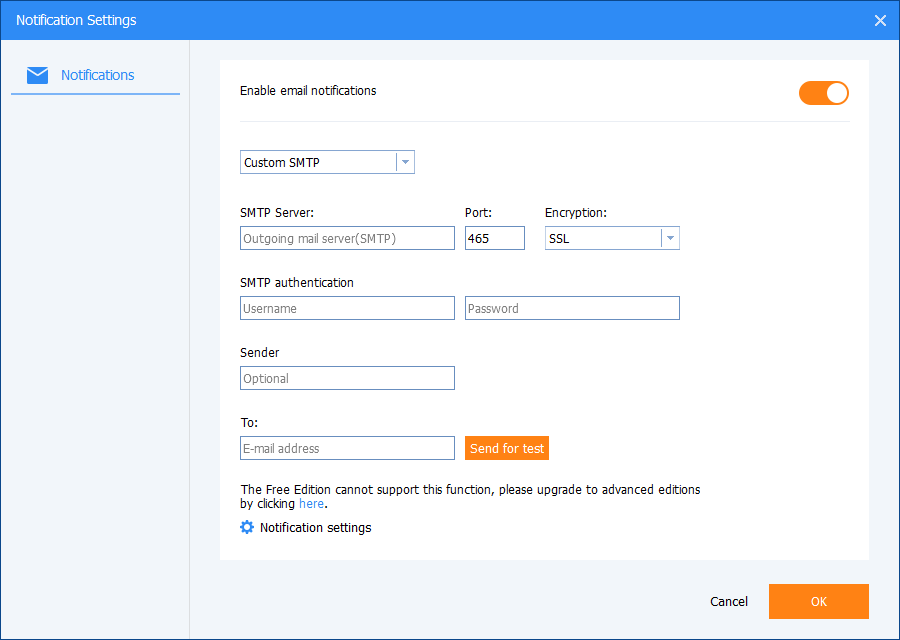

Email Notification: In unattended operations, a notification can be emailed containing the result of each backup. Custom SMTP is available to send email notifications and it is a paid feature.

Notification Settings: You can choose the notification type you need from the following options.

1. The operation is completed successfully.

2. The operation fails.

3. User interaction is required.

Notification emails can be sent using HTML or text. All conditions for sending email notifications are selected in the Notification Settings by default. A report will be provided if the operation is completed or not. For verifying settings are correct, CBackup has the option "Send for test" to send a test message to the configured email address or phone number.

To Enable Email notifications for a Backup Task

1. When creating a new backup task, you can enable email notification through "Options"---"General"---"Email notification".

2. You can enable email notification for an existing backup task in the Home screen by selecting "Edit Backup" and then clicking "Options" -> "Email notification".

Notes:

• When you set email notification with the Custom SMTP server selected, CBackup requires SMTP authentication and it does not support anonymous access.

• CBackup cannot configure multiple email addresses to receive the email notification. You can create an email group and add these email addresses to this group. After that, you can put the group email address as the recipient of notifications, so these email addresses within the group can also receive the email notifications.

Backup Mode

For system/partition/disk backup, you can set the backup mode.

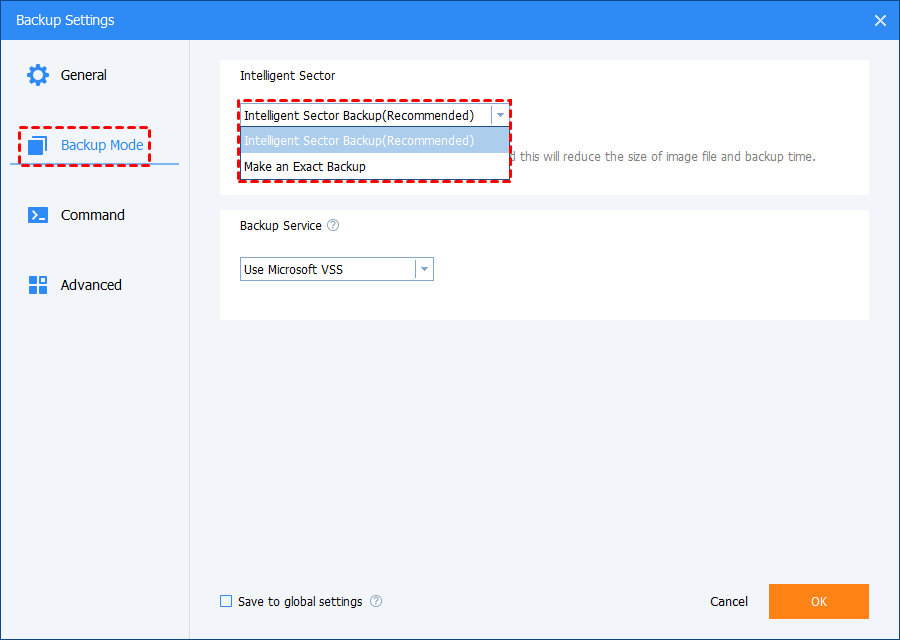

Intelligent Sector: For the intelligent sector feature, CBackup uses the intelligent sector by default. If you select the sector-by-sector option ("Make an Exact Backup"), backups will take longer as it will back up both the used and unused space on your disk. This feature is available for System Backup, Partition Backup, and Disk Backup only.

Backup Service

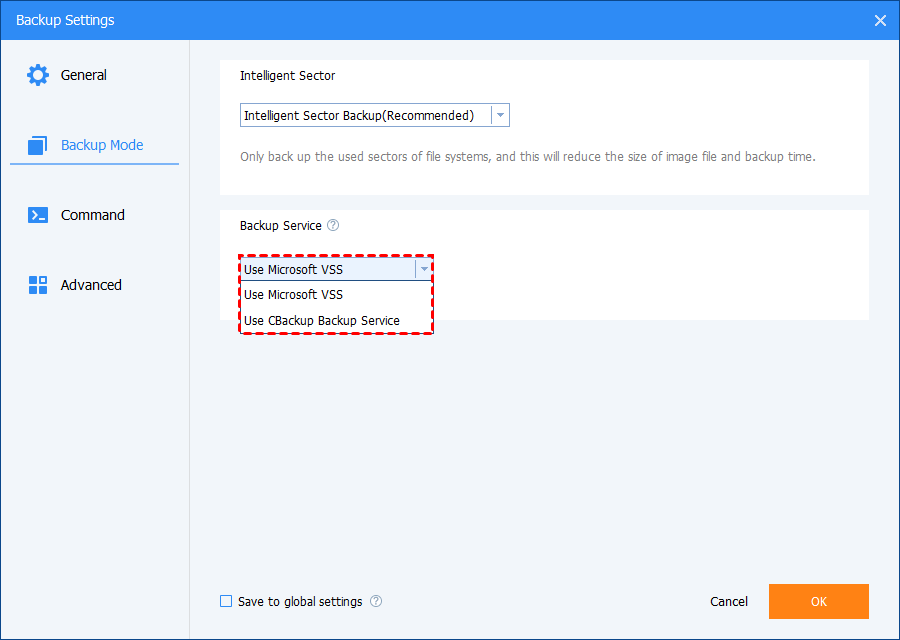

For system/partition/disk backup, you can also set the backup service.

VSS: VSS (Volume Shadow Copy Service) is a backup technology used by Microsoft, which allows the computer to continue to be used while a backup is in progress. If VSS is not selected, then CBackup will automatically use its own built-in technique instead of performing a live backup. Choose one of the modes to begin the backup task.

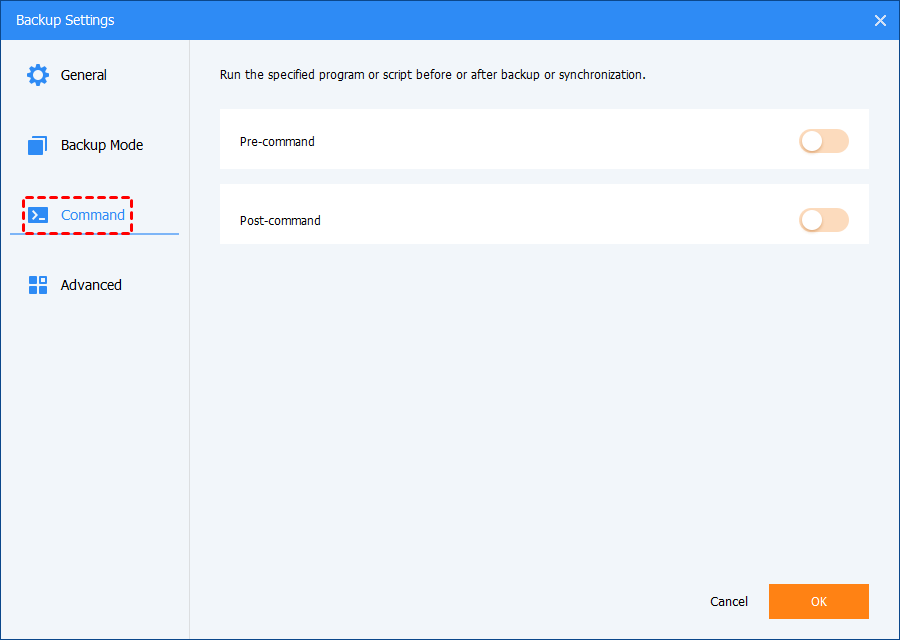

Command

In this option, you can set the pre-command and post-command.

Pre-command: Run the specified program or script before backup or synchronization.

Post-command: Run the specified program or script after backup or synchronization.

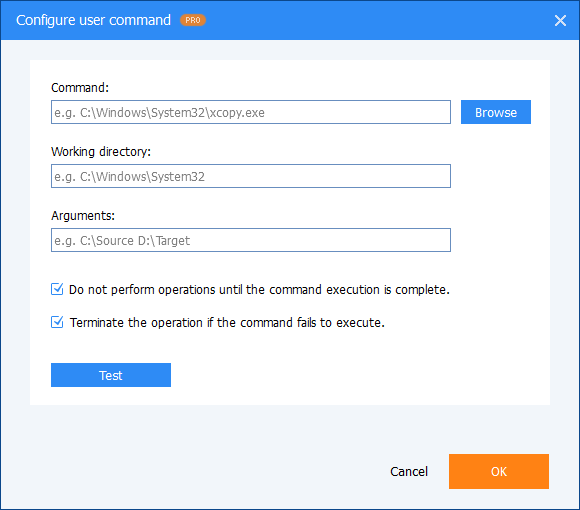

Configure user command:

• Command: Browse to load a script file or executable program file.
• Working directory: Type a folder path to save the result of the Pre-command or Post-command execution.
• Arguments: Set some arguments for the command if necessary.
• "Terminate the operation if the command fails to execute" and "Do not perform the operation until the command execution is complete" are selected by default.
• Click "Test" button to verify the command.
• Click "OK" button to save the command settings.

Notes:

1. Real-time sync doesn't support Pre-command and Post-command.

2. Generally, the source path of the script file or executable program file will be filled into Working directory by default after you add the script file or executable program file to the Command. You can change to another path manually.

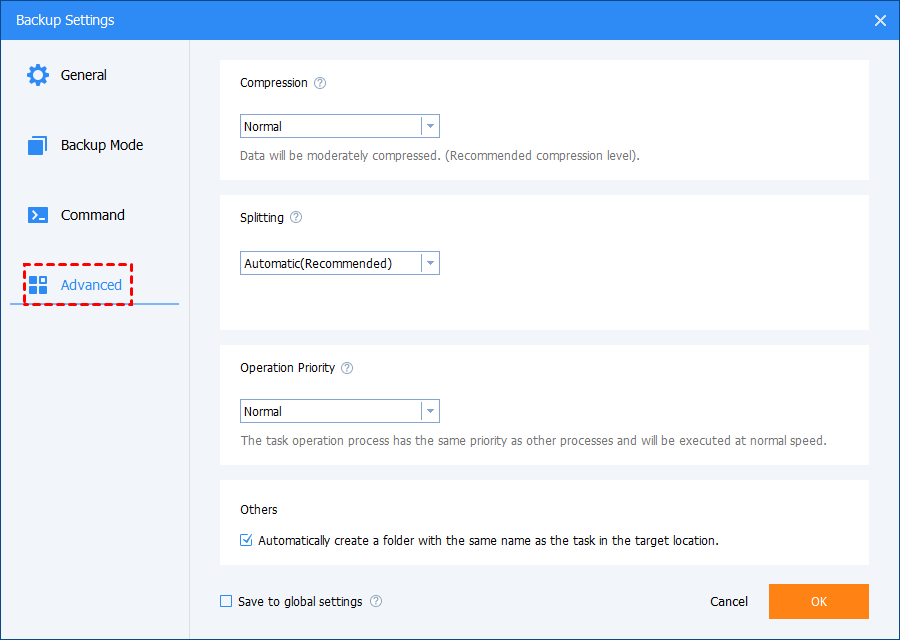

Advanced

In this option, you can change the compression and backup file splitting mode.

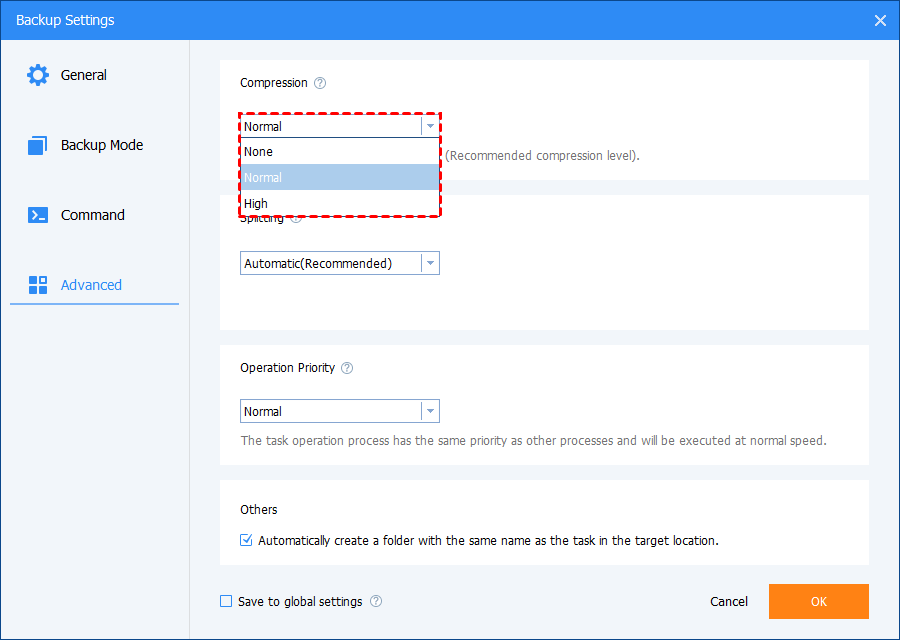

? Compression

You can choose the compression level for your backup task. If you choose "High", then it would take a longer time to create the backup.

Tip: Some computer files (such as .jpg, .pdf or .mp3) are already compressed. If the backup image file contains many such files, then the generated backup file may not significantly decrease in size even though the high compression level is selected.

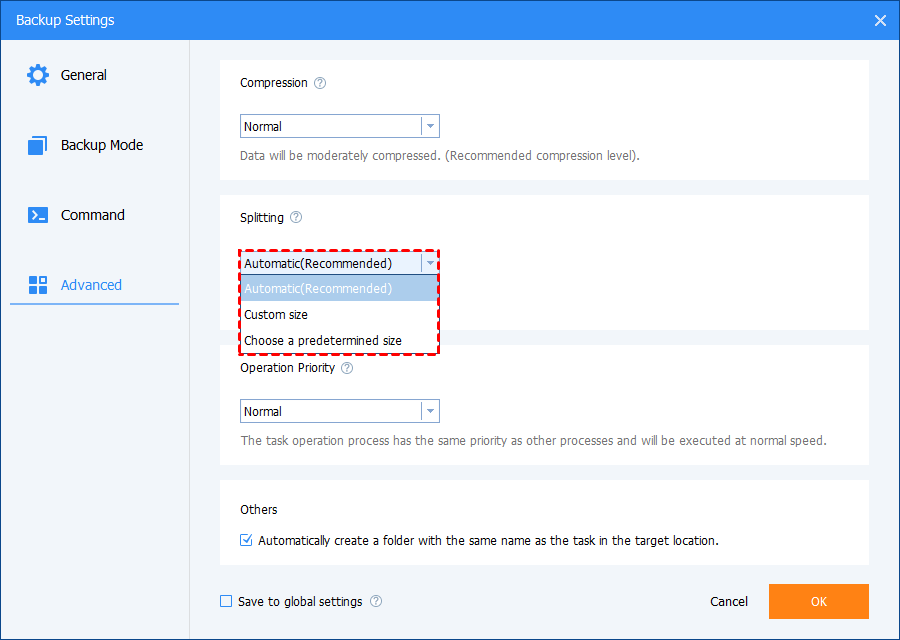

? Splitting

Backup files can be split into several smaller files to fit into different smaller storage media. CBackup can automatically create a backup file into multiple parts during the backup process. The options available are listed below.

• Automatic: The image split size depends on the file system of the destination storage medium. For example, FAT32 partitions (commonly used on USB sticks) can only save files up to 4GB (4096MB) in size.
• Customize size:  Input the required file size value and future backup images will be split into segments of this size. The minimum supported file size is 50MB.
• Choose a predetermined size: Choose the storage medium type in the drop-down menu. CBackup will then split the image file to suit the selected medium.

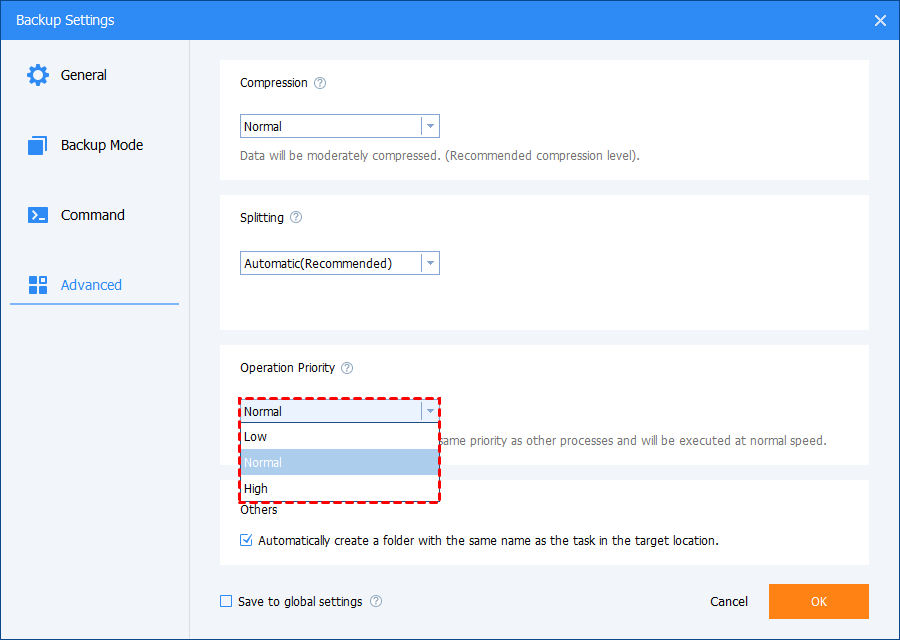

? Operation Priority

It is an option to configure the priority of the backup operation.

After the operation priority is configured, the execution time of the task will be affected. According to the needs of the task, the priority of the task execution can be adjusted up or down.

• High: The task operation process will have a higher priority than other processes on your computer and will be executed at a faster speed.
• Normal: The task operation process will have the same priority as other processes on your computer and will be executed at a normal speed.
• Low: The task operation process will have a lower priority than other processes on your computer and will be executed at a slower speed.

? Automatically create a folder with the same name as the task in the target location: It is ticked by default. So, it will create a folder with the task name under the target path to save backup files or synced content. For example, if you create a backup task named Disk Backup, it will first create a Disk Backup folder under the target drive you select and then save backup images within that folder.

More Options in Menu-->Settings-->Advanced

In the CBackup main menu, there are also settings available.

In the settings, you can set general Notifications, Backup Mode, and Advanced Settings. These settings are general, so there is no need to set them up manually every time you create a new backup/sync task after you set them up here.

Note: For email notifications, after you set a general notification, you still need to manually enable email notifications every time you create a new backup/sync task. If only a general notification is set, but the notification is not enabled in the backup task, you will not get the email notifications after the backup task is finished.

Automatically check the backup on completion: CBackup will check each backup upon completion automatically to verify the backup has been created properly.

Enable program window self-adaptive to screen resolution and DPI settings: The program will adjust window size automatically according to your screen resolution and DPI settings.

Don't show tray icon next time: Generally, the scheduled task will show via a tray icon in the lower right corner of the computer when a task is running. If you check the option, the tray icon won't appear when the scheduled task is active.

Join the User Experience Improvement Program: Selecting this option allows us to improve our software.

Choose Language: You can select the language from the drop-down option according to your requirements.
